Crafter Unit Parts
Skip to Parts List


Back to top

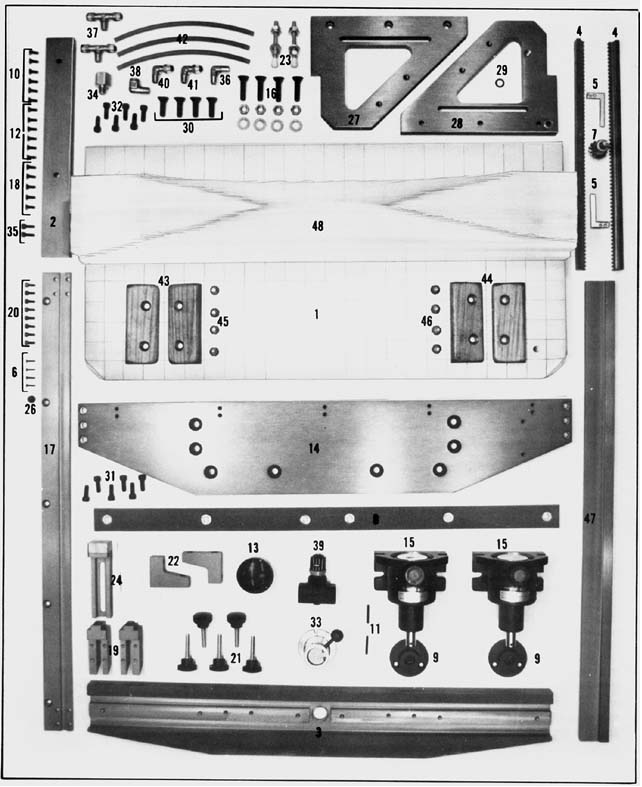

REF. NO. QUANTITY DESCRIPTION PART NO.
1 1 BASE 10000
2 1 COPE FENCE 10300
3 1 MATERIAL CLAMP 20000
4 2 CENTERING RACK 20100
5 2 CENTERING FINGER 20170
6 4 SCREWS, CENTERING FINGER 20521
7 1 GEAR ASSEMBLY FOR CENTERING 20600
8 1 RACK, HOLDING PLATE W/RUBBER 20200
9 2 FLANGE, CLAMP CYLINDER 20300
10 6 SCREWS, FLANGE 20522
11 2 ROLL PIN, CYLINDER 20523
12 6 SCREWS, RACK HOLDING PLATE 20524
13 1 CENTERING KNOB WITH SET SCREW 20650
14 1 CYLINDER HOLDING PLATE 30000
15 2 CLAMPING CYLINDER 30923
16 4 SCREWS, CYL MOUNTING W/ NUTS & WASHERS 30925
17 1 TEMPLET BAR 30500
18 5 SCREWS, TEMPLET BAR 30505
19 2 TEMPLET HOLDER, LEFT AND RIGHT 30790
20 8 SCREWS, TEMPLET HOLDER 30795
21 5 SCREW KNOB, TEMPLET, COPE FENCE, BRAKE & RAIL STOP 30800
22 2 BRACKET, DEPTH STOP 30400
23 2 DEPTH ADJUSTMENT SCREW ASSEMBLY & RUBBER FEET 30405
24 1 ADJUSTABLE BRAKE 30775
25 0 (SEE REPAIR KIT BELOW) 40200
26 1 PIPE PLUG 40005
27 1 RIGHT HANDLE 40001
28 1 LEFT HANDLE 40002
29 1 "O" RING, LEFT HANDLE 40003
30 4 SCREWS, DEPTH STOP BRACKET 30403
31 6 SCREWS, HANDLE TO CYLINDER MOUNT PLATE 40004
32 6 SCREWS, HANDLE TO BASE 40006
33 1 VALVE, CLAMPING ON/OFF 50000
34 1 QUICK DISCONNECT, BRASS ADAPTER 50002
35 2 SCREWS, CLAMPING ON/OFF VALVE 50001
36 1 PIPE EL, AIR CONTROL VALVE, LEFT HANDLE 50003
37 2 TEE, AIR CLAMPING CYLINDER 50004
38 1 STREET EL, ON/OFF VALVE BRASS ADAPTER 50005
39 1 VALVE, AIR FLOW CONTROL 50006
40 1 MALE EL, FLOW CONTROL VALVE AIR TUBE 50007
41 1 MALE EL, ON/OFF VALVE, AIR TUBING 50008
42 1 SET AIR TUBING (3 LENGTHS) 50009
43 1 SET GRIP, LEFT HANDLE 50010
44 1 SET GRIP, RIGHT HANDLE 50011
45 4 SCREWS, LEFT GRIP 50012
46 4 SCREWS, RIGHT GRIP 50013
47 1 TOP RAIL STOP 40800
48 1 SET INDEPENDENCE TEMPLATES 60000


Back to top
REPAIR KITS
NOT SHOWN PLASTIC INSERTS FOR BRASS FITTINGS 50041
NOT SHOWN RUBBER STRIPS & REPLACEMENT TAPE, 3 PC 200003
NOT SHOWN ON/OFF VALVE REPLACEMENT PARTS 500001
NOT SHOWN CLAMP CYLINDER, "O" RING SET (1 CYL) 40200
NOT SHOWN CLAMP CYLINDER, "O" RING SET (2 CYL) 40201
NOT SHOWN CLAMP CYLINDER REPAIR KIT (1 CYLINDER) W/SHAFT,
BUSHINGS, "O" RING, NUT, ROLL PINS
50015
NOT SHOWN CLAMP CYLINDER REPAIR KIT (2 CYLINDERS) W/SHAFTS,
BUSHINGS "O" RINGS, NUTS, & ROLL PINS
500151
