THE CARBIDE TIPPED ROUTER BIT SYSTEM
WITH THE RELIABLE CARBIDE TIPPED ROUTER BIT SYSTEM YOU CAN NOW DO MANY OF THE JOBS THAT IN THE PAST COULD ONLY BE DONE WITH A WOOD SHAPER.
THE PANEL CRAFTER, TRUE STILE & RAIL WITH RAISED CONSTRUCTION.
SINGLE ROUTER BIT, SINGLE PASS SYSTEM, NO MULTIPLE SET-UPS USING FLIP FLOP CUTTERS.
A TRUE RAISED PANEL WITH 1-1/2" REVEAL ON THE FACE OF YOUR CABINET DOOR.
A FINGER PULL CUTTER FOR THE OUTER EDGE OF THE DOOR, ELIMINATING THE NEED FOR EXTERIOR KNOBS OR DRAWER PULLS.
AN OPTIONAL BIT THAT TRANSFORMS YOUR PANEL CRAFTER INTO A GLASS DOR STILE & RAIL SET.
CORNER LOCK-MITRE BITS, ONE FOR 3/8" TO 1/2" AND ONE FOR 3/4" THRU 1"
THESE AND MANY MORE AND ALL MADE IN THE USA -- ALL PANEL RAISERS AND STILE & RAIL SETS ARE TEST CUT PRIOR TO SHIPMENT.

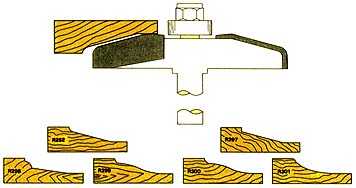

PANEL RAISING BITS

PANEL RAISING BITS ARE 3-7/8" DIAMETER - CUT AT FULL 1-1/2" DEEP
PANEL RAISING BITS ARE 15° SHEAR FACE FOR SMOOTH CUTTING.
45° ANGLE CHAMFER BITS

FOR 3/4 and 1" THICK MATERIAL
REPLACEMENT BEARING NO. B-11
STOCK NO. A B C
R-323 2" 1/2" 13/16"
R-324 2-1/2" 1/2" 1-1/4"
FINGER PULL BIT

OGEE PANEL BIT
ROUND OVER STILE & RAIL BITS ROMAN OGEE STILE & RAIL BITS CLASSIC STILE & RAIL BITS

CORNER LOCK-MITRE BIT

CORNER LOCK MITRE BIT
3/4" TO 1" MATERIAL
WHEN PROPERLY POSITIONED THIS ROUTER BIT WILL CUT NO. C AND NO. D MATCHING JOINTS.
NO. C IS RUN FLAT ON ROUTER TABLE. NO. D IS RUN ON END AGAINST THE ROUTER FENCE.
R405 3/8" TO 1/2" MATERIAL
GLASS DOOR STILE AND RAIL SETS

WEDGE GROOVE WEDGE TONGUE GLUE JOINT BIT

ROUNDING OVER BITS

REPLACEMENT BEARING NO. B-11
STOCK NO. A B C R
R-320 2-1/2" 1/2" 1-1/4" 1"
R-321 3" 1/2" 1-1/2" 1-1/4"
R-322 3-1/2" 1/2" 1-3/4" 1-1/2"
